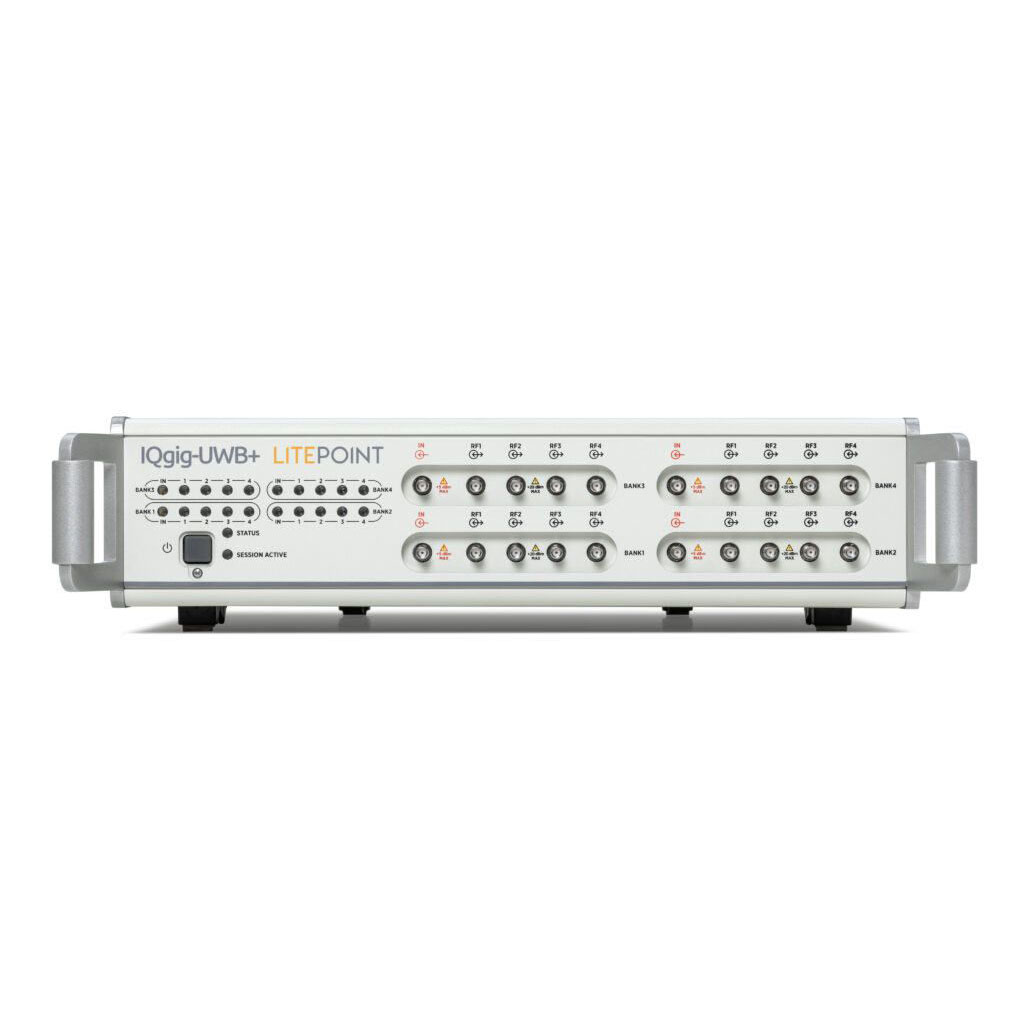

IQgig-UWB+™ Tester

Next gen Ultra-Wideband (UWB) Test System

Industry-standard UWB Test System Just Got Better

UWB, used in mission critical applications, such as precise location-based services and secure entry and payment, requires rigorous testing in R&D characterization and certification, and accurate and efficient testing in high-volume production. LitePoint’s IQgig-UWB+, a UWB physical-layer test system that was designed for UWB from the ground up, meets the specific and challenging testing needs of UWB.

UWB (802.15.4z and beyond) Testing from R&D and Certification to the Manufacturing Floor

Complete Ultra-Wideband test solution with all signal generation, analysis, and processing contained in a single, robust instrument
Covers the complete frequency range of Band Group 2 channels, from 5 GHz to 11 GHz
Enables comprehensive transmitter and receiver testing with > 1.4 GHz single-shot bandwidth
Precision trigger and response mechanism to enable accurate Time of Flight (ToF) measurements with picosecond level accuracy
Incorporates features for synchronizing packet to UWB packet switching

All-encompassing One-Box Tester

Integrated per-port delay lines and attenuation for angle-of-arrival (AoA) calibration and verification within the tester, reducing cabling and simplifying setup
Built-in LNA in the Over-the-Air (OTA) ports with low noise figure to provide better sensitivity for OTA test environments
Comes in 5-port, 10-port, and 20-port configurations to choose from for use cases from R&D to multi-DUT production

UWB Complete Over-The-Air (OTA) DVT Solution

Comprehensive total solution for UWB ranging (ToF) and Angle of Arrival (AoA) characterization and RF parametric data collection of UWB devices
OTA DVT Chamber provides a compact and flexible solution for UWB device characterization and design verification
High performance Vivaldi antenna optimized for UWB testing: high gain across UWB frequencies for improved OTA SNR, accurate phase center for AoA testing and flat group delay. UWB/Bluetooth^® antennas are also available for dual-technology testing.
Single-polarized and dual-polarized Vivaldi Antenna for azimuth and elevation AoA characterization/calibration

Designed for UWB Manufacturing Testing

Multi-port configurations are easily expandable for efficient multi-DUT testing in production test
Turnkey IQfact+™ application software provides quick and reliable results for both calibration and verification

Turnkey Solutions for Leading UWB Chipset Manufacturers

Start testing immediately with IQfact+ software solutions for wide variety of leading Ultra-Wideband chipsets
Ideal for characterization and production, automates tester control, DUT control and data collection
